Specifications
| Product Name | Crescent Base 1 | Crescent Base 2 | Crescent Base 3 20L Type |
Crescent Base 3 40L Type |
Crescent Base 4 43L Type |
Crescent Base 4 Pallet Size Container |
|---|---|---|---|---|---|---|
| Product Number | CB01.90 | CB02.70 | CB03.20 | CB03.40 | CB04.43V | CB04.1000V |
| Insulating Material | Polystyrene | Polyurethane | Vacuum Insulation Material, Polyurethane | Vacuum Insulation Material, Polyurethane | Vacuum Insulation Material, Polyurethane | Vacuum Insulation Material, Polyurethane |
| Main Usage | Foldable Refrigeration |
Long-term, Frozen Food, Ice Cream | Long-term, Freezing and Refrigeration | Long-term, Freezing and Refrigeration | Fresh Food, Pharmaceuticals, Disaster Relief | Fresh Food, Pharmaceuticals, Disaster Relief |
| Outer Surface | PVC | PVC | Galvanized Steel Sheet | Galvanized Steel Sheet | Color Steel Plate | Color Steel Plate |
| Inner Surface | PVC Aluminum Deposition Sheet | ABS Vacuum Molded | Stainless Steel Sheet | Stainless Steel Sheet | Color Steel Plate | Color Steel Plate |
| External Dimensions※ | 750x510x410 | 645x480x490 | 415x340x345 | 540x330x435 | 470x470x470 | 1100x1100x1100 |
| Internal Dimensions | 640x440x325 | 520x380x380 | 320x245x240 | 470x250x365 | 350x350x350 | 1030x1030x1030 |
| Weight | Approx. 9.0kg | Approx. 10.2kg | Approx. 8.0kg | Approx. 11.5kg | - | - |
| Capacity (L) | 93L | 75L | 20L | 43L | 43L | 1000L |
※External dimensions do not include projections.
※External and internal dimensions: approx. mm
※Crescent Base 4 can be customized in size.
Key Points
- Can be loaded with frozen and ambient temperature cargoes in a regular truck.
- Suitable for companies that need a refrigerated truck but cannot afford it, so they can use a regular truck.
- Crescent Base 4 34L Type is a size that can be transported by taxis and similar vehicles.
- Crescent Base 4 Pallet Size Container and Crescent Base 1 are foldable, allowing for space-saving during the return journey and securing space for the return cargo.
Appearance

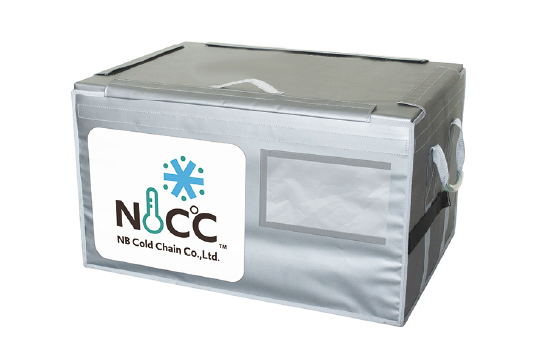

[Crescent Base 1]
Foldable insulated box.

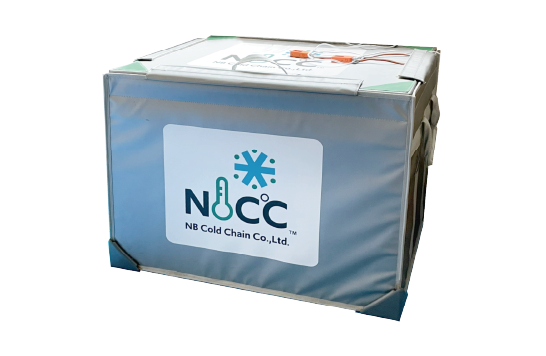

[Crescent Base 2]
Suitable for long-term cooling.

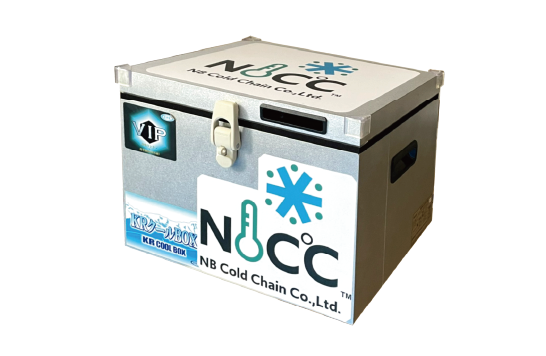

[Crescent Base 3]
Suitable for low-temperature transport.

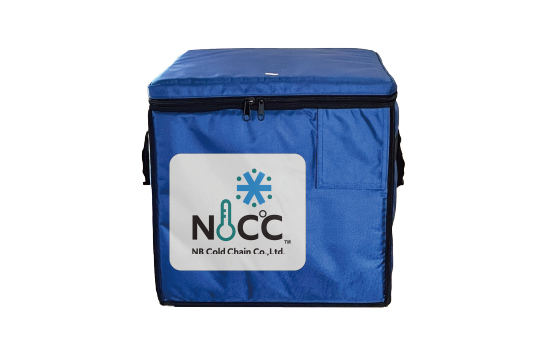

[Crescent Base 4 34L Type]
The size can be customized.
Learn more here

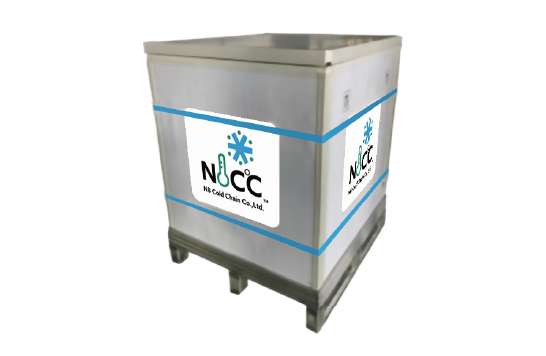

[Crescent Base 4 Pallet Size Container]
If you are already using standard pallet transport, it is recommended when starting refrigerated transport.
Learn more here
