Data Collection


  • This does not demonstrate that the same results will be obtained under different environmental conditions, even when using the same ice packs and cool boxes.
  • Although there may be errors due to diagrammatic representation, there is no tampering.

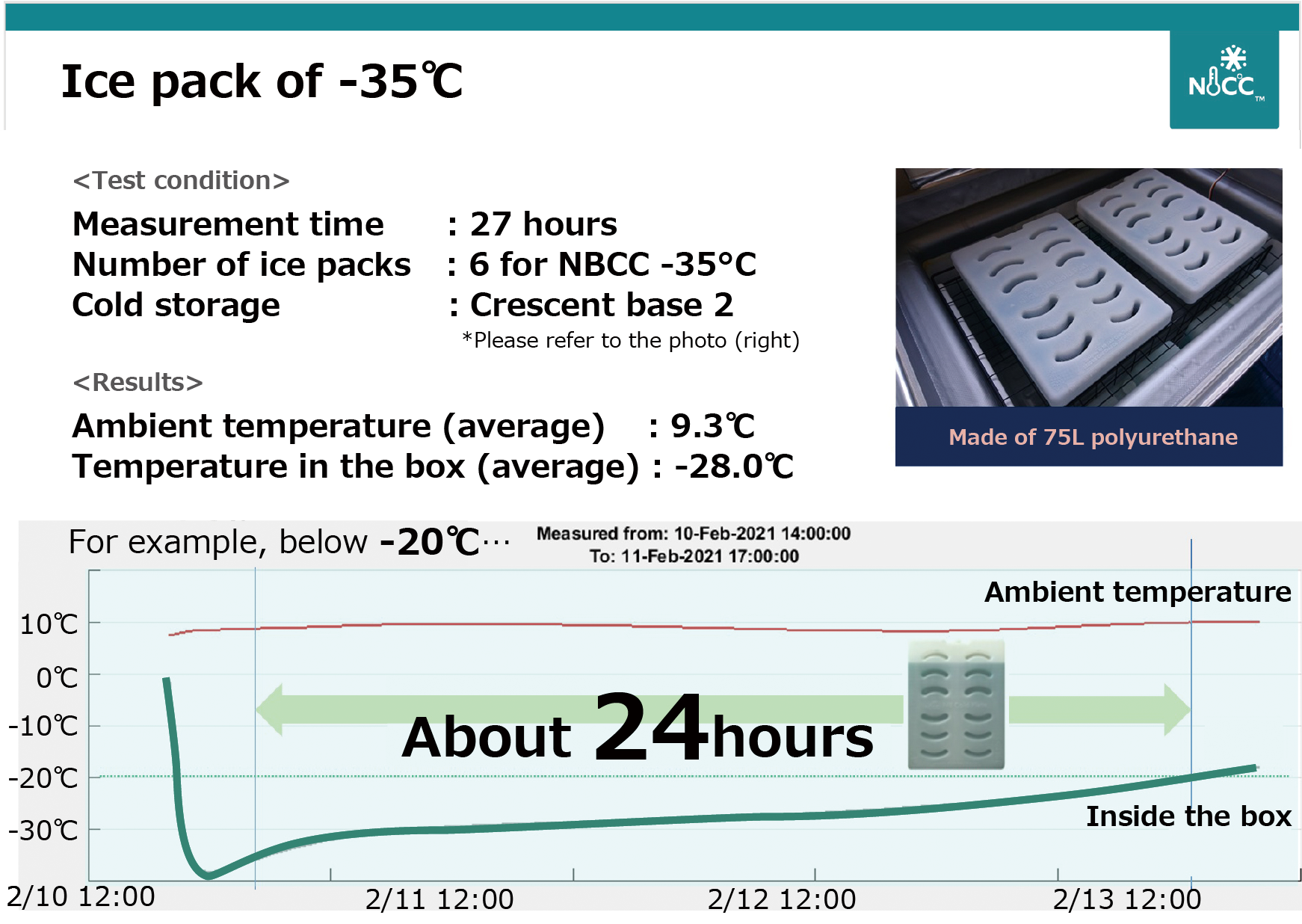

When the outside temperature was about 9 degrees Celsius, It was kept -20 degrees Celsius for 24 hours.

 It was kept -20 degrees Celsius for 24 hours.

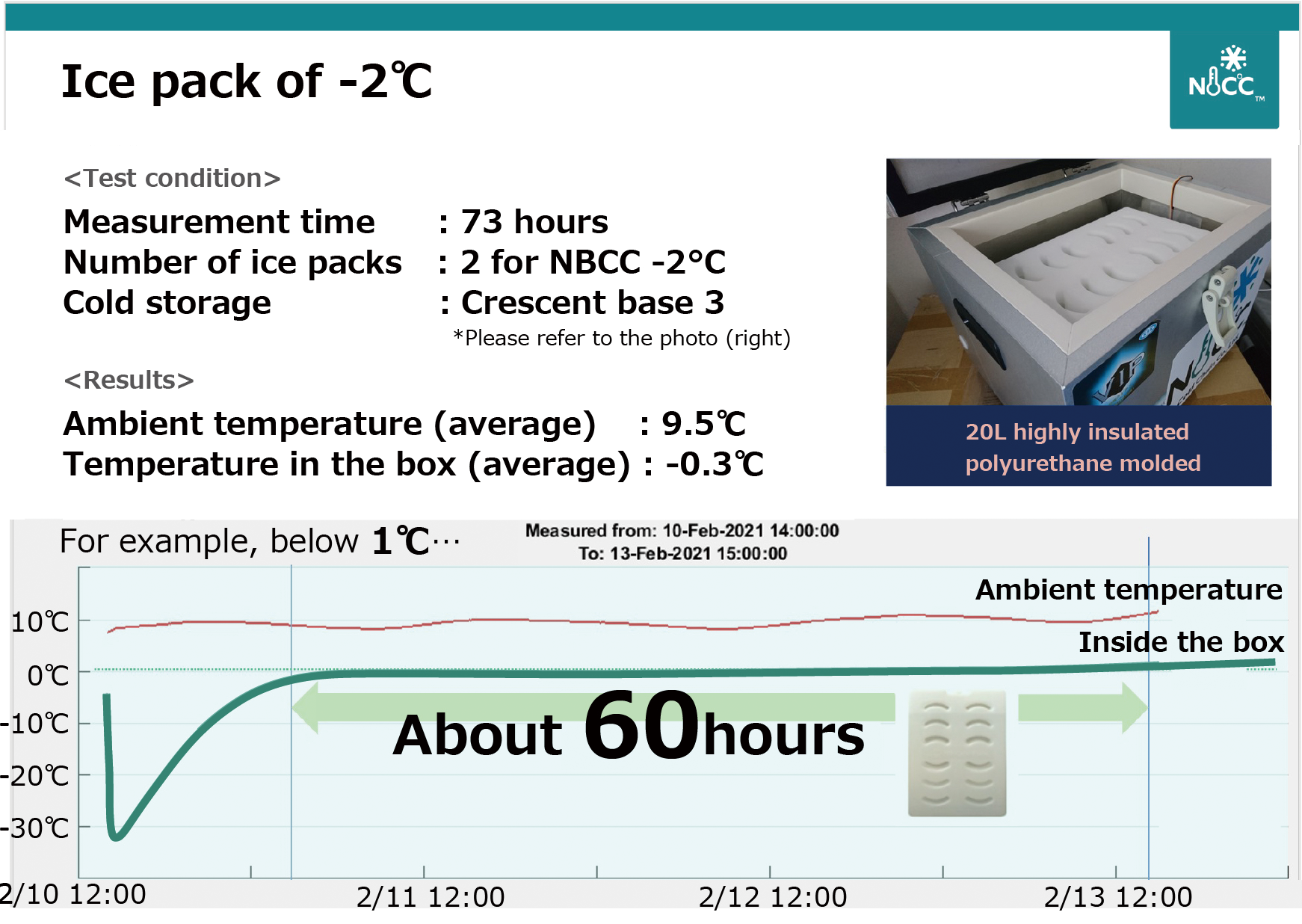

When the outside temperature was about 9 degrees Celsius, it was kept below 1 ° C for 60 hours.

it was kept below 1 ° C for 60 hours.

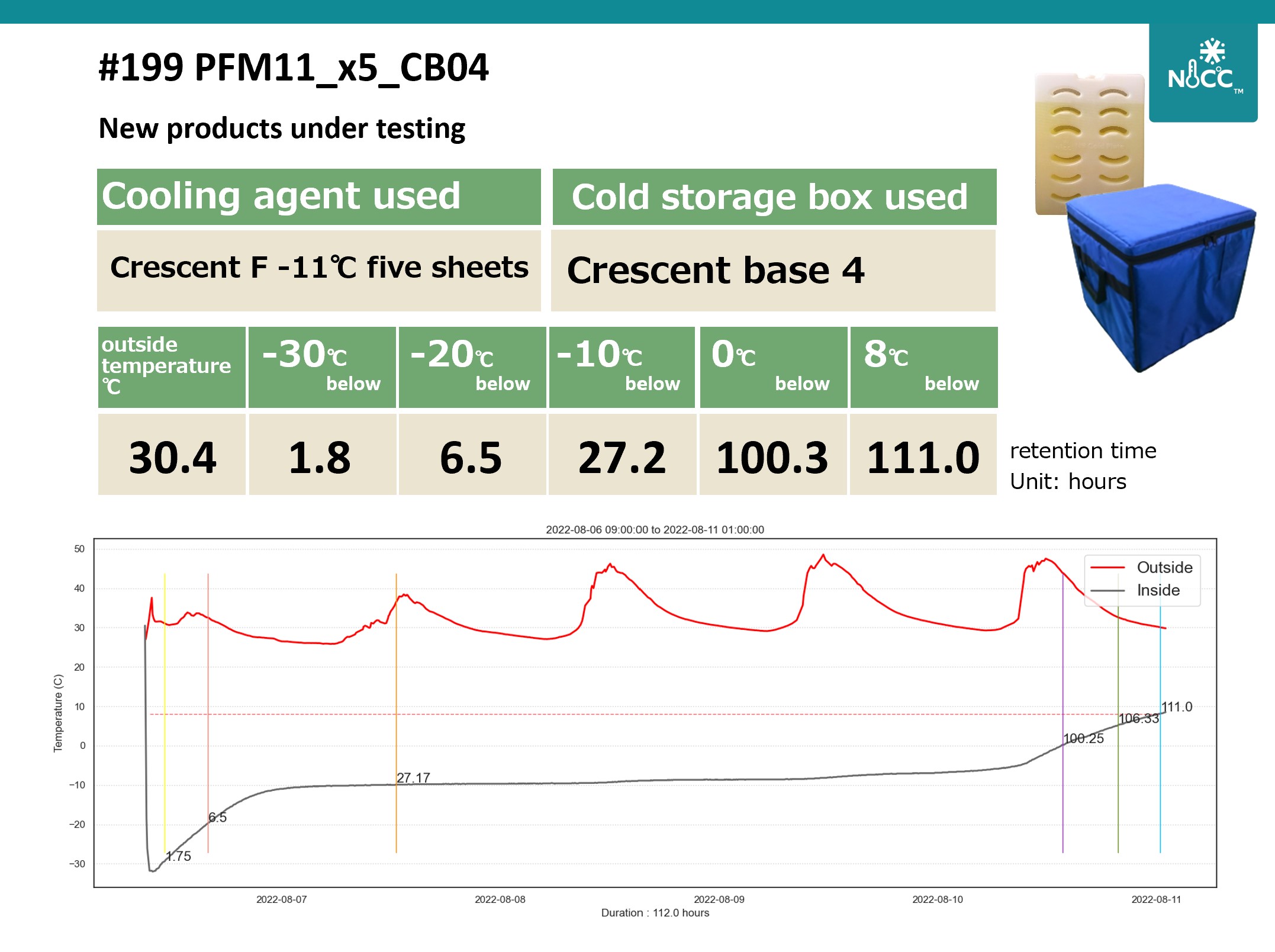

When the outside temperature was about 30.4 degrees Celsius, The temperature inside the chamber was maintained at -10°C or lower for 27 hours.

Test data

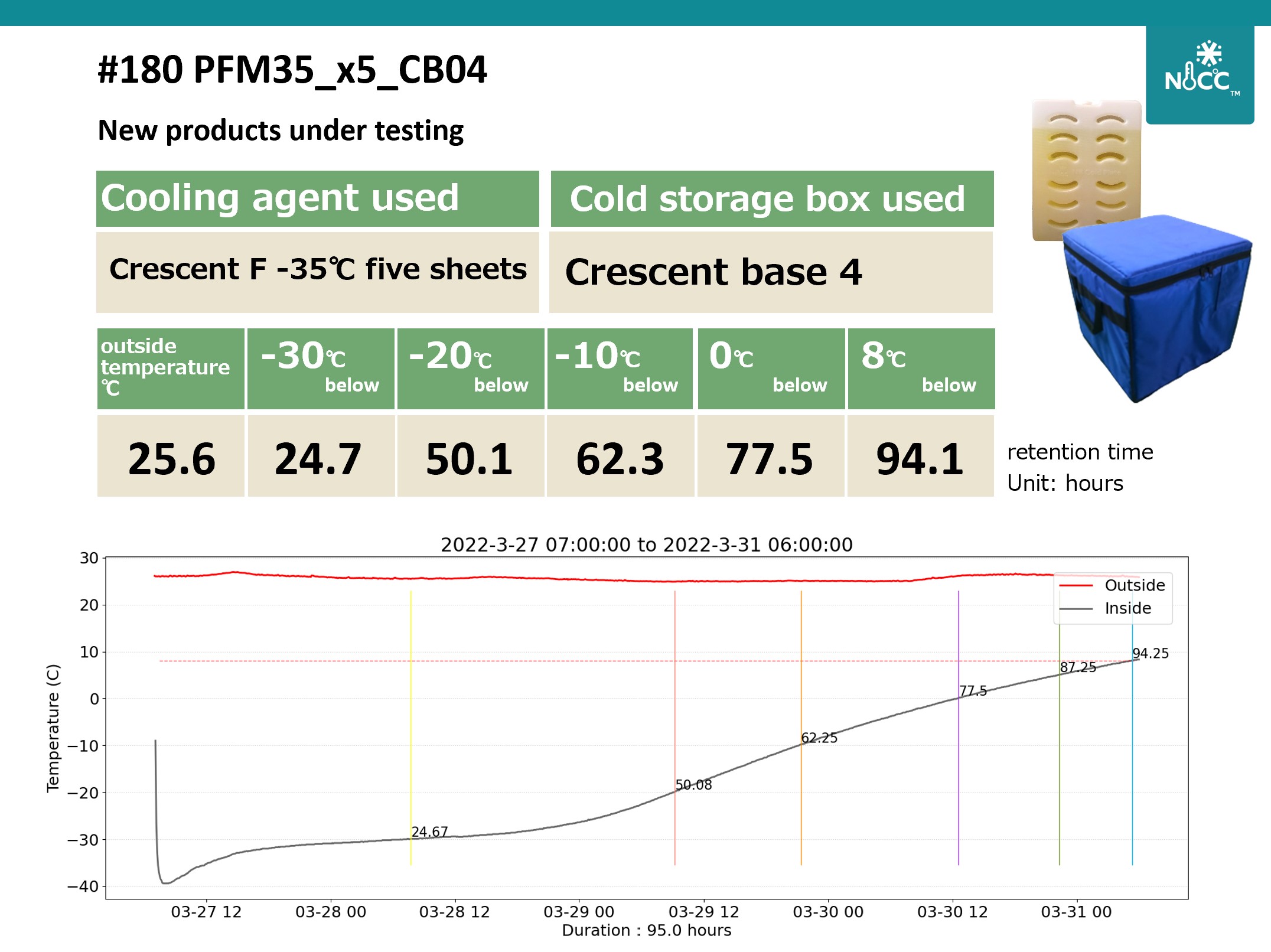

When the outside temperature was about 25.6 degrees Celsius,The temperature inside the chamber was maintained at -20°C or lower for 51 hours.

Test data

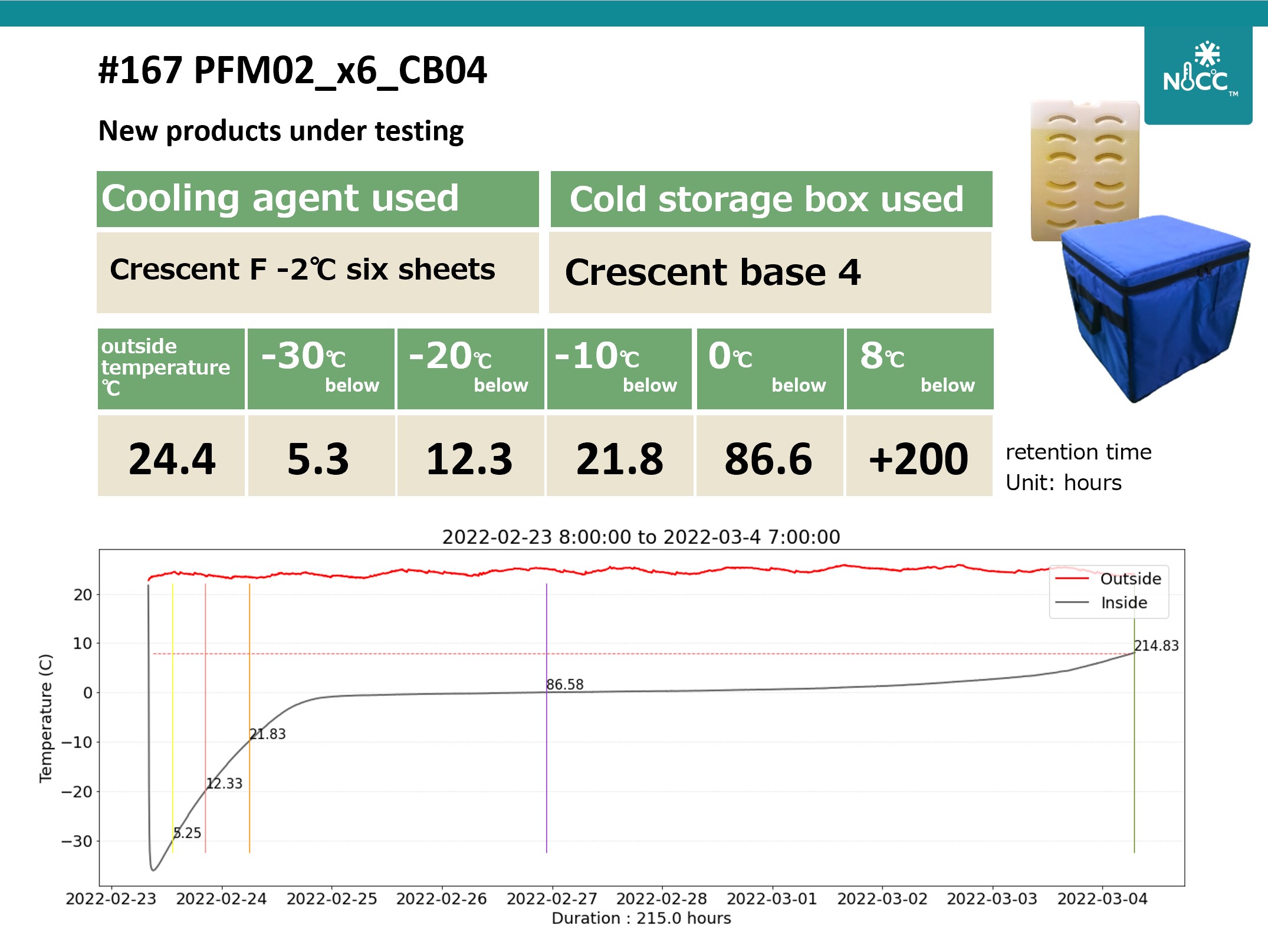

When the outside temperature was about 24.4 degrees Celsius, The temperature inside the chamber was maintained at 8°C or lower for 200 hours.

Test data

Please kindly contact us as below.
We propose the type and number of ice packs for your request.
